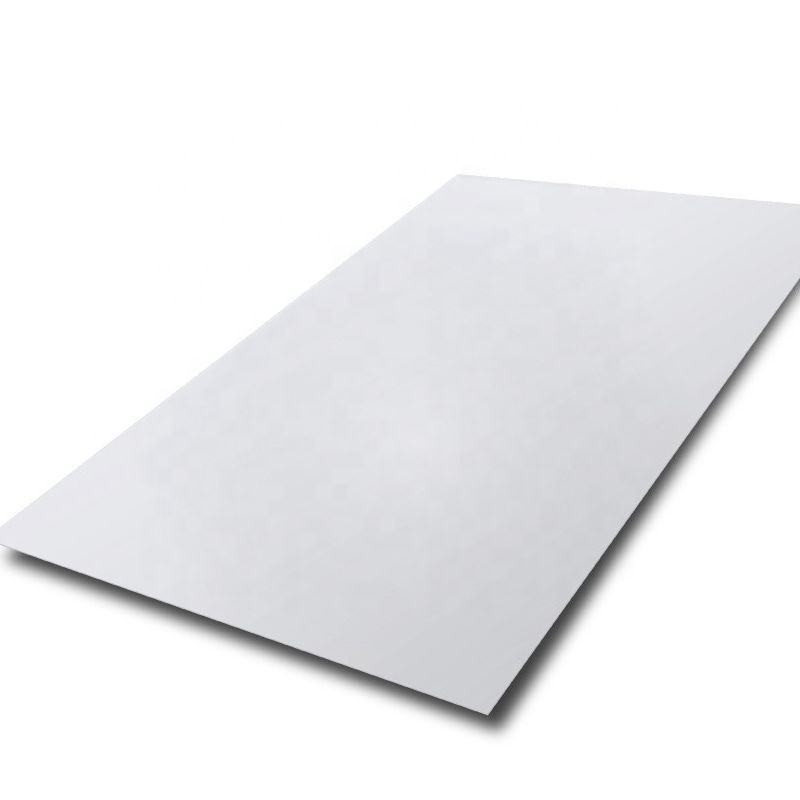

Metal 3mm 4x8 Cold Roll Stainless Steel Sheet SS Plate

Metal 3mm 4x8 Cold Roll Stainless Steel Sheet SS Plate

Products - Stainless Steel Metal Plate
  • High Light

    4x8 cold roll SS Plate

    ,

    3mm cold roll Steel Sheet

    ,

    4x8 cold roll Steel Sheet

  • Type
    Stainless Steel Plate
  • Material
    430 321 2205 2520 2507 309S 904L 420 310S 201 316L 304
  • Technique
    Rerolling,Hairline Mirror Etching Embossing,Cold Drawn Hot Rolled Forged
  • Thickness
    0.2-3mm Cold Roll (3-16mm 18-150mm Hot Roll)
  • Standard
    JIS Aisi ASTM DIN EN Bs
  • Width
    600mm - 1800mm All Available
  • Processing Service
    Bending, Welding, Decoiling, Punching, Cutting, Moulding
  • Application
    Construction,Kitchenware,Medical Instruments,Industry,Decoration

Metal 3mm 4x8 Cold Roll Stainless Steel Sheet SS Plate

  • Metal 3mm 4x8 Cold Roll Stainless Steel Sheet SS Plate
  • Metal 3mm 4x8 Cold Roll Stainless Steel Sheet SS Plate
Get Price Contact Now

Metal 3mm 4x8 Stainless Steel Sheet SS Plate



Product specification

Specifications of stainless steel sheet:

Specifications : ASTM A240 / ASME SA240

Grade: 304L, 316, 316L, 316Ti, 310, 310S, 321,347, 347H, 410, 420, 253SMA, 254SMO, 2205

Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc

Length :2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc

Thickness : 0.3 mm to 30 mm

Technology : Hot rolled plate (HR), Cold rolled sheet (CR)

Surface Finish : 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Brush, etching, SATIN (Met with Plastic Coated) etc.

Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats.



Stainless Steel 316 / 316L sheet Equivalent Grades:



Material
200 300 400 Series stainless steel
Grade
201 202 301 303 304 304L 309 309S 310 310S 316 316L 316Ti 317L 321 2205 2507 409 409l 410 410S 420 420J1 420J2 430 441 444 904L
Standard
AiSi ASTM JIS DIN EN BS
Tech
cold rolled / hot rolled
Thickness
Hot rolled: 3mm-16mm 16-150mm
Normal: 3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 16.0
As per customer’s request: 16-150mm
Cold rolled: 0.3-6mm
Normal:0.3/0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0
As per customer’s request: 4.0/5.0/6.0
Width&Length
1000mm-6000mm, or as per customer's request
Hot rolled: 1250*3000mm (4.1*10ft) 1500*3000mm (5*10ft)
1250*6000mm (4.1*19.6ft) 1500*6000mm (5*19.6ft)
1800*6000mm (5.9*19.6ft) 2000*6000mm(6.5*19.6ft)
Cold rolled: 1000*2000mm (3.2*6.5ft) 1219*2438mm (4*8ft)
1500*3000mm (5*10ft)
1800 available 2000 available
Place of Origin
Jiangsu China
Processing Service
Bending, Welding, Recoiling, Punching, Cutting
Tolerance
±1%





STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316 1.4401 / 1.4436 S31600 SUS 316 316S31 / 316S33 - Z7CND17‐11‐02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3


SS 316 / 316L sheet Chemical Composition and Mechanical properties:



Grade C Mn Si P S Cr Mo Ni N
SS 316 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 – 18.00 2.00 – 3.00 11.00 – 14.00 67.845 min
SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 – 18.00 2.00 – 3.00 10.00 – 14.00 68.89 min



Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %








Processing Equipment

  • plasma cutting
  • decoiler machine
  • slitting unit
  • flying shear
  • water cutting equipment



Application market



Applications decoration and daily products
chemical applications
automotive trim
knives, decoration, household appliances





Packaging & Delivery



Packing Details: 1. Export sea worthy package + water proof paper + wooden pallet
2. Safe loading and fixing Professional teams
Seaworthy wooden pallet or according to client's requirement
MOQ 1 ton or free samples
Price term FOB China port & CIF Destination Port & CFR
Delivery Detail: within 7-10 working days after receiving the deposit or according to your order quantity.





Commitment clause

  • Reliable quality and competitive price
  • Accept any third party test
  • Professional sales team and reliable factory
  • Customized design is available
  • Free sample are available
  • Showing the splendor of your quality
  • Strong corrosion resistance and decorative effect
  • Durable and beautiful in good quality
