317L Stainless Steel Plate ASTM A240 4mm 100mm Thickness

317L Stainless Steel Plate ASTM A240 4mm 100mm Thickness

  • High Light

    Stainless Steel Plate 4mm 100mm

    ,

    317L Stainless Steel Plate BA 2B

    ,

    polished stainless steel plate ASTM A240

  • Type
    Stainless Steel Sheet/Plate/Coil
  • Grades
    200 Series: 201 202300 Series: 301 304 304L 309 310 310s 316 316L 321 400 Series: 409 410 410S 420 430
  • Thickness
    0.2mm – 5.0mm
  • Length
    2000mm, 2440mm, 3000mm, 5800mm, 6000mm, AS PER CUSTOMER’S REQUIREMENT
  • Width
    3.2mm – 1500mm
  • Finish
    BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, Embossed,perforated,water Ripple
  • Form
    Plate/sheet
  • Application
    Costruction Industry/Kichten Products/Fabrication Industry/Home Decoration

317L Stainless Steel Plate ASTM A240 4mm 100mm Thickness

317L Stainless Steel Plate ASTM A240 4mm-100mm Thickness



Product specification



Stainless Steel 317L is a molybdenum containing, low carbon austenitic stainless steel with increased additions of chromium, nickel, and molybdenum for better corrosion resistance and increased resistance to chemical attack for sulfurous, acetic, formic, citric, and tartaric acids. Due to its low carbon content, 317L also provides resistance to sensitization when welded and higher creep, stress to rupture, and tensile strength at elevated temperatures. It is non-magnetic in the annealed condition but may become slightly magnetic after welding.





Stainless Steel 317L Sheet, Plate & Coil Specifications
Specifications ASTM A240 / ASME SA240
Thickness 4mm-100mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand
blast, Brush, etching, etc
Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.





The SS 317L Sheets & Plates are used in various industrial applications all around the world. These stainless steel 317/317L plates are often used in textile equipment, Food Processing Equipment, Condensers in fossil fuel, nuclear-fueled power generations, etc. These plates are also used in Chemical processing equipment, pulp and paper manufacturing, petrochemicals equipment, and so on.



SS 317/317L Sheets & Plates are tested during the time of manufacturing and we conduct strict quality checks through testings. The several tests we perform are flattering test, mechanical test, chemical test, pitting resistance test, micro & macro test, hardness test, positive material identification, flaring test, tensile test, etc.



317/317L Stainless Steel Sheets and Plates Equivalent Grades



STANDARD UNS WNR. JIS EN
SS 317 S31700 1.4449 SUS 317 -
SS 317L S31703 1.4438 SUS 317L X2CrNiMo18-15-4




Packaging & Delivery



Packing Details: 1. Export sea worthy package + water proof paper + wooden pallet
2. Safe loading and fixing Professional teams
Seaworthy wooden pallet or according to client's requirement
MOQ 1 ton or free samples
Price term FOB China port & CIF Destination Port & CFR
Delivery Detail: within 7-10 working days after receiving the deposit or according to your order quantity.





Commitment clause

  • Reliable quality and competitive price
  • Accept any third party test
  • Professional sales team and reliable factory
  • Customized design is available
  • Free sample are available
  • Showing the splendor of your quality
  • Strong corrosion resistance and decorative effect
  • Durable and beautiful in good quality

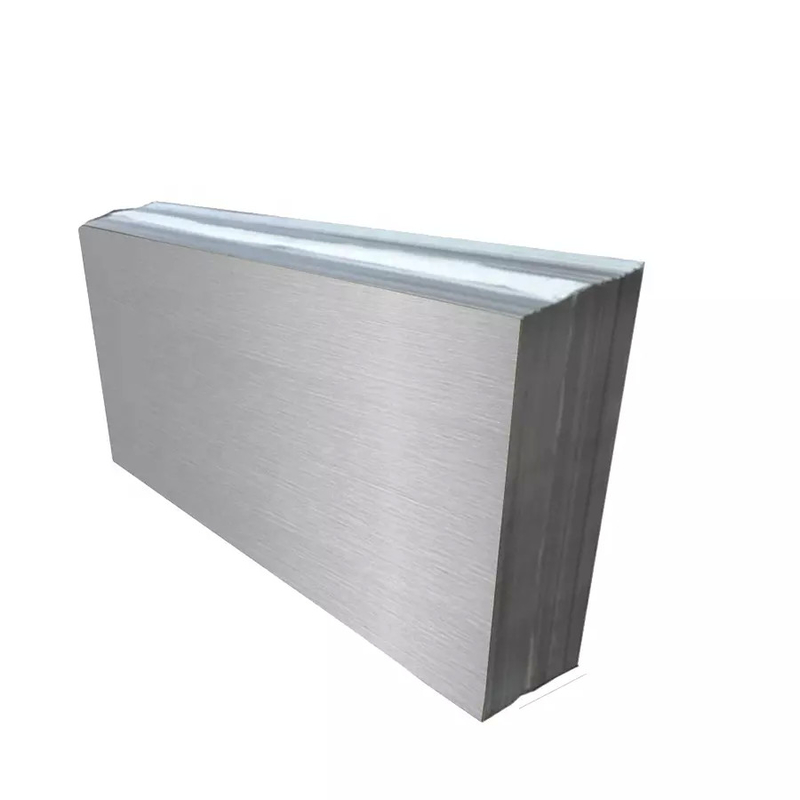

317L Stainless Steel Plate ASTM A240 4mm 100mm Thickness 0
