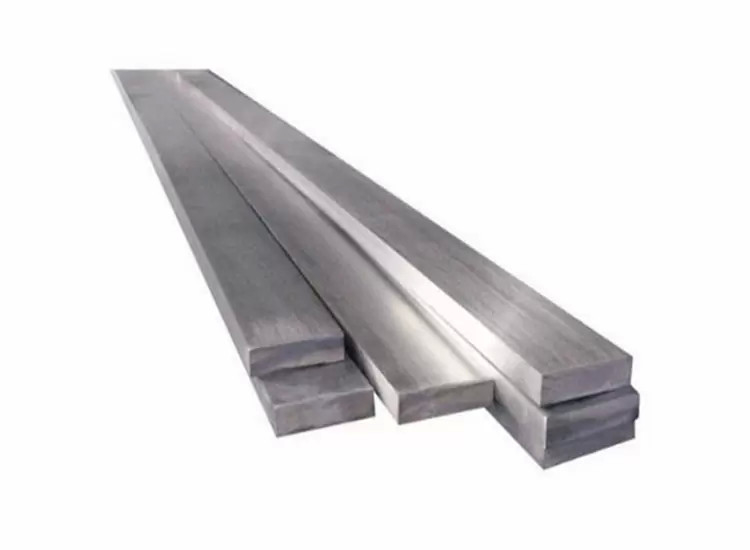

Brushed 316 Polished Flat Stainless Steel Bar Stainless Steel 304 Flat Bar
-
High Light
316 Polished flat stainless steel bar
,Stainless Steel 304 Flat Bar
,Brushed flat stainless steel bar
-
TypeStainless Steel Flat Bar
-
Surface2B
-
Length2m-6m(as Required)
-
ToleranceH9-H11
-
ApplicationKitchenware & Construction
-
StandardJIS, AiSi, ASTM, GB, DIN, EN, SUS
-
Processing ServiceBending, Welding, Decoiling, Punching, Cutting
-
KeywordCold Drawn Flat Bar
Brushed 316 Polished Flat Stainless Steel Bar Stainless Steel 304 Flat Bar
Brushed 316 Polished Flat Bar Stainless Steel 304 Flat Bar
Product specification
Stainless Steel Flat Bar is a common term referred flat bars made up of stainless steel. There are different types of stainless steel such as ferritic, autenitic, martensitic and duplex. Navstar Steel is a leading manufacturer and supplier of these bars in all types and grades. The Stainless Steel Flat Bar material can vary based on the composition. The most used ones are the austenitic types. The 304 grade of stainless steel is the most used stainless steel in the world. The material has 18% chromium an 8% nickel in the composition.
Brushed 316 Polished Flat Bar Specification List
| Grade | All Grades |
|---|---|
| Bar Finishing | Bright, Polish & Flat |
| Otder Services | Machining (CNC), Centreless Grinding (CG), Heat Treatment, Anneling, Pickling, Polish, Rolling, Forging, Cutting, Bending, Minor Fabrication, |
| Test Certificate | Manufacturer Test Certificate / Laboratory Test Certificate from Govt. Approved Lab / Under tdird Party Inspection & witd Excise Gate Pass to avail Modvat benefit. |
Processing Steps for SS Flat Bar
- Stainless Steel Flat Bar Cutting
- Stainless Steel 304 Flat Bar Heat Treating
- Stainless Steel 316 Flat Bar Machining
- SS Flat Bar Additional Services
Stainless Steel 304 Flat Bar Weight
| FlatS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | - | - |
| 65 | - | - |
| 70 | - | - |
| 75 | - | - |
| 80 | - | - |
| 90 | - | - |
| 100 | - | - |
Standard Grade of Stainless Steel 316 Flat Bar
| FlatS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | - | - |
| 65 | - | - |
| 70 | - | - |
| 75 | - | - |
| 80 | - | - |
| 90 | - | - |
| 100 | - | - |
Chemical Composition of Polished Stainless Steel Flat Bar
| Element | C | Cr | Mn | Ni | P | S | Si |
|---|---|---|---|---|---|---|---|
| SS 304 | 8.0 – 11.0 | 18.0 – 20.0 | 2.0 max | 8.0 – 11.0 | 0.045 max | 0.03 max | 1.0 max |
| SS 304L | 8.0 – 11.0 | 18.0 – 20.0 | 2.0 max | 8.0 – 12.0 | 0.045 max | 0.03 max | 1.0 max |
| SS 316 | 0.08 | 18.0 | 2.00 | 14.0 | 0.045 max | 0.03 max | 0.75 max |
| SS 316L | 0.08 | 18.0 | 2.00 | 14.0 | 0.045 max | 3.00 max | 0.10 max |
Mechanical Properties Analysis of Ss Flat Bar
| Element | Tensile Strength | Yield Strength | Elongation | Reduction in Area | Hardness |
|---|---|---|---|---|---|
| SS 304 | Psi – 85,000 | Psi – 45,000 | 50% | 55% | Rb 180 |
Packaging & Delivery
| Packing Details: | 1Export sea worthy package + water proof paper + wooden pallet |
| 2Safe loading and fixing Professional teams | |
| Seaworthy wooden pallet or according to client's requirement | |
| MOQ | 1 ton or free samples |
| Price term | FOB China port & CIF Destination Port & CFR |
| Delivery Detail: | within 7-10 working days after receiving the deposit or according to your order quantity. |
APPLICATION
Commitment clause
- Reliable quality and competitive price
- Accept any third party test
- Professional sales team and reliable factory
- Customized design is available
- Free sample are available
- Showing the splendor of your quality
- Strong corrosion resistance and decorative effect
- Durable and beautiful in good quality
