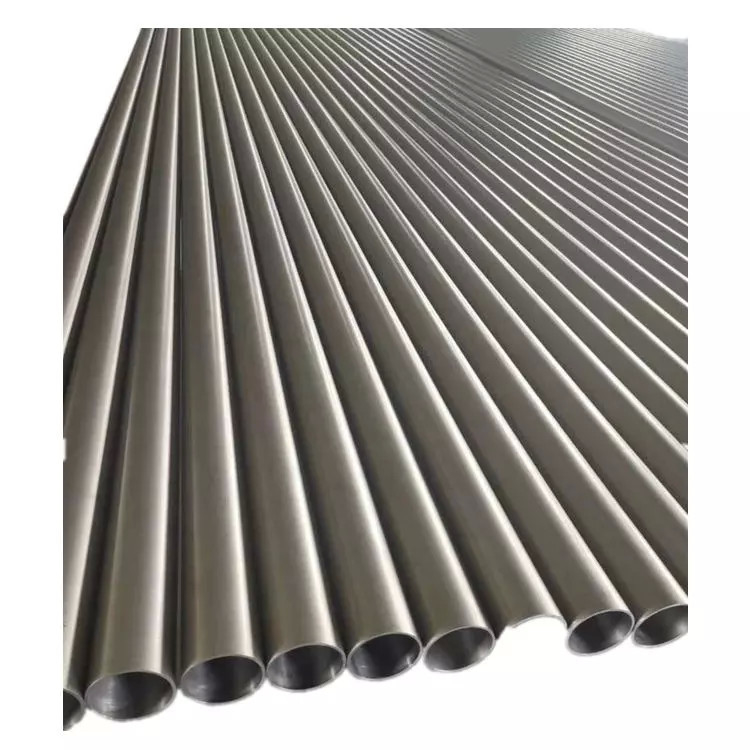

Q235 Galvanised CS Seamless Pipe Hot Dippped Galvanized Pipe

Q235 Galvanised CS Seamless Pipe Hot Dippped Galvanized Pipe

Products - CS Seamless Pipe
  • High Light

    Q235 Galvanised CS Seamless Pipe

    ,

    10mm seamless carbon steel pipe

    ,

    910 mm CS Seamless Pipe Hot Dippped

  • Product Name
    Carbon Seamless Steel Pipe
  • Standards
    ASTM,ASME,DIN,EN
  • Length
    12M, 6m, 6.4M
  • Thickness
    1 - 56 Mm
  • Outer Diameter
    10 - 910 Mm
  • Surface
    Black Painted Or S Customer's Requires
  • Processing Service
    Welding, Punching, Cutting, Bending, Decoiling
  • Application
    Construction Structure

Q235 Galvanised CS Seamless Pipe Hot Dippped Galvanized Pipe

  • Q235 Galvanised CS Seamless Pipe Hot Dippped Galvanized Pipe
Get Price Contact Now

Carbon Steel Thick Wall Q235 Galvanised Tube Hot Dippped Galvanized Pipe





Product specification



SA179/SA192 CHEMICAL AND MECHANICAL COMPONENT:

ASTM A179/(ASME SA179)
Seamless Cold Drawn Low Carbon Steel Heat Exchanger And Conderser Tubes
Application:
For tubular heat exchangers,condensers,and similar heat transfer apparatus.
Size(mm): O.D.:6.0~114.0mm W.T.:1~15mm L:max 18000mm





Grade and Chemical Composition (%)

Chemical Composition C Mn P≤ S≤ Si≤
0.06-0.18 0.27-0.63 0.035 0.035 0.25





Tolerance(SA-450/SA-450M):

OD In (mm) + - WT In(mm) + -
<1(25.4) 0.10 0.10 ≤1.1/2(38.1) 20% 0
1~1.1/2(25.4~38.1) 0.15 0.15 >1.1/2(38.1) 22% 0
>1.1/2~<2(38.1~50.8) 0.20 0.20
2~<2.1/2(50.8~63.5) 0.25 0.25
2.1/2~<3(63.5~76.2) 0.30 0.30
3~4(76.2~101.6) 0.38 0.38
>4~7.1/2(101.6~190.5) 0.38 0.64
>7.1/2~9(190.5~228.6) 0.38 1.14








ASTM A192/A192M-02
Seamless Carbon Steel Bolier Tubes for High-Pressure
Application:
For seamless carbon steel bolier and superheater tubes for high-pressure service
Size(mm): O.D.:6.0~114.0 W.T.:1~15 L:max 18000





Grade and Chemical Composition (%)

Chemical Composition C Mn P≤ S≤ Si≤
0.06-0.18 0.27-0.63 0.035 0.035 0.25





Tolerance(SA-450/SA-450M):

OD In (mm) + - WT In(mm) + -
<1(25.4) 0.10 0.10 ≤1.1/2(38.1) 20% 0
1~1.1/2(25.4~38.1) 0.15 0.15 >1.1/2(38.1) 22% 0
>1.1/2~<2(38.1~50.8) 0.20 0.20
2~<2.1/2(50.8~63.5) 0.25 0.25
2.1/2~<3(63.5~76.2) 0.30 0.30
3~4(76.2~101.6) 0.38 0.38
>4~7.1/2(101.6~190.5) 0.38 0.64
>7.1/2~9(190.5~228.6) 0.38 1.14








Packaging & Delivery



Packing Details: 1. Export sea worthy package + water proof paper + wooden pallet
2. Safe loading and fixing Professional teams
Seaworthy wooden pallet or according to client's requirement
MOQ 1 ton or free samples
Price term FOB China port & CIF Destination Port & CFR
Delivery Detail: within 7-10 working days after receiving the deposit or according to your order quantity.





Commitment clause

  • Reliable quality and competitive price
  • Accept any third party test
  • Professional sales team and reliable factory
  • Customized design is available
  • Free sample are available
  • Showing the splendor of your quality
  • Strong corrosion resistance and decorative effect
  • Durable and beautiful in good quality



Q235 Galvanised CS Seamless Pipe Hot Dippped Galvanized Pipe 0
