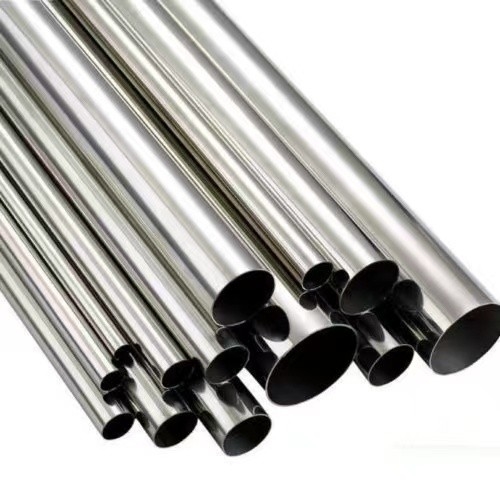

Grade 409 Seamless Stainless Steel Tube High Temperature Corrosion Resistance
-
High Light
409 Seamless Stainless Steel Tube
,1.25 inch stainless steel tubing
,Round Seamless Stainless Steel Tube
-
TypeStainless Steel Tube
-
Tolerance±1%
-
ShapeRound Pipe Tube
-
Steel Grade300 Series, 301L, S30815, 301, 304N, 310S, S32305, 410, 204C3, 316Ti, 316L
-
Outer Diameter20mm
-
Processing ServiceBending, Welding, Decoiling, Punching, Cutting, Moulding
-
ApplicationIndustry, Construction, Etcs
Grade 409 Seamless Stainless Steel Tube High Temperature Corrosion Resistance
Grade 409 Stainless Steel Tube High-Temperature Corrosion Resistance
Product specification
Grade 409 stainless steel is a Ferritic steel that offers good mechanical properties and high-temperature corrosion resistance. It is commonly considered as a chromium stainless steel, with applications in exhaust systems of automobiles and applications that demand weldability.
Grade 409 steels are also available in highly stabilized forms, such as grades S40930, S40920 and S40910. The stability of these grades is provided by the presence of niobium, titanium, or both, in the composition of steels.
Key Properties
The properties given below relate to annealed tubing of ASTM A268. The specified properties may not be similar to other products such as bar and coil.
Composition
The typical chemical compositional ranges of grade 409 stainless steels are given below:
Table 1 - Composition ranges of grade 409 stainless steels
| Grade | C | Mn | Si | P | S | Cr | Ni | Ti | |
| 409 |
min. max. |
- 0.08 |
- 1.00 |
- 1.00 |
- 0.045 |
- 0.045 |
10.5 11.75 |
- 0.5 |
6x C 0.75 |
Mechanical Properties
The table below provides the mechanical properties of grade 409 stainless steels:
Table 2 - Mechanical properties of grade 409 stainless steels
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 409 | 450 | 240 | 25 | 75 | 131 |
Physical Properties
The physical properties of annealed grade 409 stainless steels are tabulated below:
Table 3 - Physical properties of annealed grade 409 stainless steels
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 409 | 7800 | 200 | 11.0 | 11.7 | 12.4 | 25.8 | 27.5 | 460 | 600 |
Stainless steel tube products are manufactured from austenitic steel alloys that provide excellent strength and advanced corrosion resistance. Austenitic stainless tubing products, including stainless 316 tubing and 304 tubing are available in round, square, and rectangular shapes to support multiple types of jobs and applications. At Industrial Metal Supply, we make it easy for you to locate and purchase the stainless steel tube that is right for you.
With custom cut to size services available to give you the perfect size stainless steel tube for your specific application, Industrial Metal Supply can provide the exact length of stainless steel tube you need, which means less waste and more savings.
Contact us for more information on our stainless tubing options including 316 stainless steel tubing and stainless 304 tubing, or call us at, or request a quote for further pricing details today. Industrial Metal Supply is your trusted supplier and distributor of premium SS tubing products.
Packaging & Delivery
| Packing Details: | 1.Export sea worthy package + water proof paper + wooden pallet |
| 2.Safe loading and fixing Professional teams | |
| Seaworthy wooden pallet or according to client's requirement | |
| MOQ | 1 ton or free samples |
| Price term | FOB China port & CIF Destination Port & CFR |
| Delivery Detail: | within 7-10 working days after receiving the deposit or according to your order quantity. |
Commitment clause
- Reliable quality and competitive price
- Accept any third party test
- Professional sales team and reliable factory
- Customized design is available
- Free sample are available
- Showing the splendor of your quality
- Strong corrosion resistance and decorative effect
- Durable and beautiful in good quality
