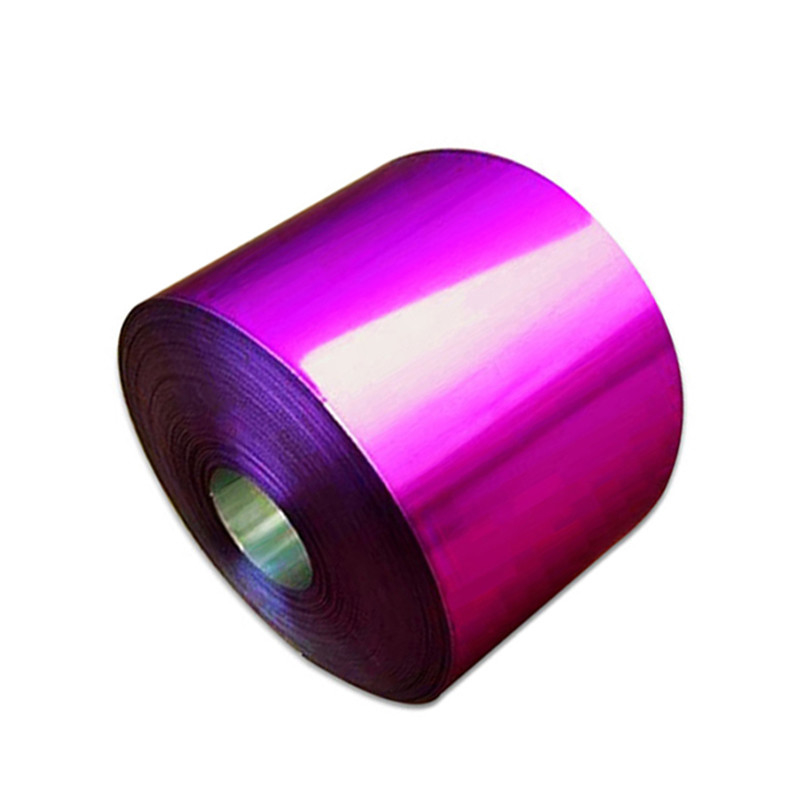

Thickness 0.2mm - 3.0mm Aluminum Coil Hot Rolled PE / PVDF Coating Paint

High Light

Aluminum Coil Hot Rolled PE Coating
,
5052 aluminum coil H18
,
3.0mm Aluminum Coil Hot Rolled
Type

Color Coated Aluminum Coil
Grade

1050 1060 1070 1100 3003 3004 3105 5005 5052 5754 5182 6061 6101 8011 Etc.
Processing

Cold Rolled, Hot Rolled
Thickness

0.2mm - 3.0mm
Coil Weight

2-3 Tons
Coating Paint

PE / PVDF
Temper

O H22 H24 H14 H26 H18
Width

600-1400mm (or Cutting As Requested)

Thickness 0.2mm - 3.0mm Aluminum Coil Hot Rolled PE / PVDF Coating Paint

Name: Thickness 0.2mm - 3.0mm Aluminum Coil Hot Rolled PE / PVDF Coating Paint
Brand: Thickness 0.2mm - 3.0mm Aluminum Coil Hot Rolled PE / PVDF Coating Paint
SKU: Thickness 0.2mm - 3.0mm Aluminum Coil Hot Rolled PE / PVDF Coating Paint
Price: 1 USD
Availability: InStock
Rating: 4.7 (163 reviews)

button button

Get Price Contact Now

PE Coating Color Coated Aluminum Coil Hot Rolled PE/PVDF Coating Paint

The color coated aluminum coil is used for large steel structure factory buildings, exhibition halls, stadiums, airports, railway stations, ceilings, and more.
The color coated aluminum sheet in different thickness can be cut, pressed, punched and folded to suit use in large, long span roofing and siding systems.
It can be cut into small pieces and processed to accommodate application needs in indoor decoration.
Through the use of polyurathamc and aluminum honeycomb, the color coated aluminum coil can be used as energy-saving external wall cladding.

Our product is coated with high-performance fluorocarbon, polyester, polyurethane and epoxy coating, and is widely used for roofs, facade cladding, ceilings, aluminum curtains, composite panels, pipe wrap, advertisement plates, instrument panels, and other uses.

PE Color Coating Aluminum Sheet/coil Parameters

Alloy No.	1050 1060 1070 1100 3003 3004 3105 5005 5052 57545182 60616101 8011 etc.
Temper No.	O, H12/H22, H14/H24, H16/H26, H18, F, etc.
Thickness	0.2mm - 3.0mm
Width	Max 1600mm; Regular Width: 914mm, 1000mm, 1200mm, 1219mm, 1250mm, 1500mm etc.
Length	MAX 6000mm; Regular Length: 2000mm, 2400mm, 2438mm, 2500mm, 3000mm,3048mm etc.
Coating Thickness	PE coating: more than 16 microns.
Color	As to RAL code
PMT	About 216-224℃
Coil ID	76mm, 152mm, 300mm, 405mm, 508mm....
Coil weight	1.5-3. 0tons

PE Coating

It can be classified into matt and highlight series according to the coating gloss.The compact molecule structure makes the painting surface luster and smooth. Because of tight surface oxide film, it has strong adhesion,oxidation resistance, acid resistance, alkali resistance, corrosion resistance, decay resistance and UV resistance.With an warranty of 10 years for weather resistance, it is widely applied for internal decoration and outdoor board.

PVDF Coating

The chemical structure of PVDF is stable and firm, and the physical properties of the fluoro carbon coating make the PVDF coated aluminum coil better wear resistance, impact resistance, fading resistance, and UV resistance. The warranty of PVDF coating is up to 20 years.

Packing & Delivery

1. Export wooden pallet, craft paper or at buyer’s requirement

2. Inner size of 20ft container: 5.69m(length) x 2.13m(width) x 2.33m(high) about 27-28CBM, load 25-26MT.

3. Usually shipped from Qingdao port

FAQ

Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q:How long is your delivery time?
A: About 3-20 days.
Q:Do you provide samples? Is it free or extra?
A:Yes,we could offer the sample for free charge but do not pay the cost of freight.
Q:Can you do customized design and size?
A:Yes,we accept product customization.
