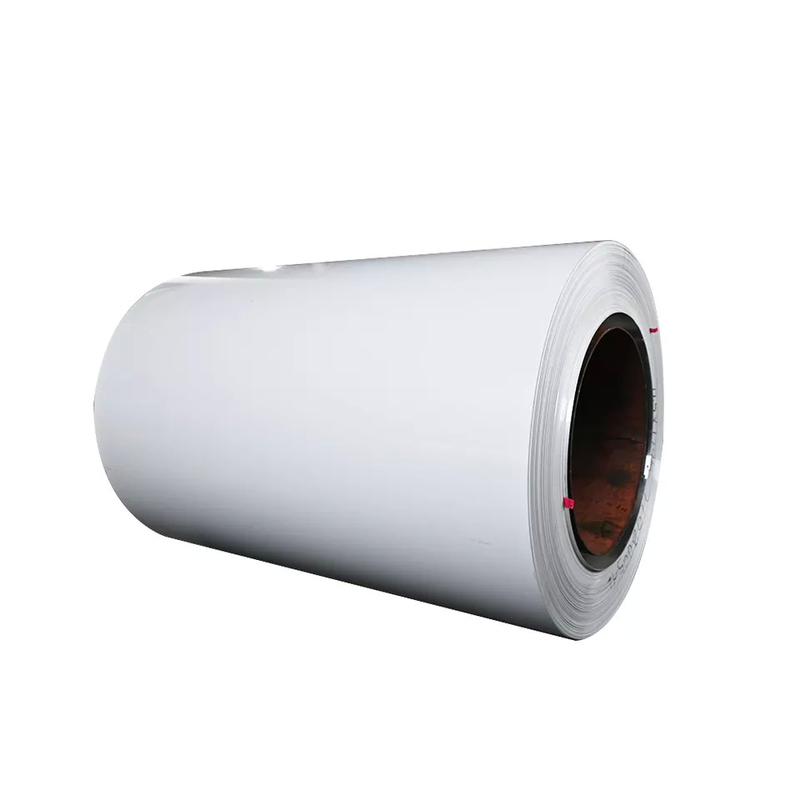

PE Coating Color Coated Aluminum Coil Hot Rolled PE/PVDF Coating Paint
Product specification
PE Coating
It can be classified into matt and highlight series according to the coating gloss.The compact molecule structure makes the painting surface luster and smooth. Because of tight surface oxide film, it has strong adhesion,oxidation resistance, acid resistance, alkali resistance, corrosion resistance, decay resistance and UV resistance.With an warranty of 10 years for weather resistance, it is widely applied for internal decoration and outdoor board.
PVDF Coating
The chemical structure of PVDF is stable and firm, and the physical properties of the fluoro carbon coating make the PVDF coated aluminum coil better wear resistance, impact resistance, fading resistance, and UV resistance. The warranty of PVDF coating is up to 20 years.
PE Color Coating Aluminum Sheet/coil Parameters
| Alloy No. |
1050 1060 1070 1100 3003 3004 3105 5005 5052 57545182 60616101 8011 etc. |
| Temper No. |
O, H12/H22, H14/H24, H16/H26, H18, F, etc. |
| Thickness |
0.2mm - 3.0mm |
| Width |
Max 1600mm; Regular Width: 914mm, 1000mm, 1200mm, 1219mm, 1250mm, 1500mm etc. |
| Length |
MAX 6000mm; Regular Length: 2000mm, 2400mm, 2438mm, 2500mm, 3000mm,3048mm etc. |
| Coating Thickness |
PE coating: more than 16 microns. |
| Color |
As to RAL code |
| PMT |
About 216-224℃ |
| Coil ID |
76mm, 152mm, 300mm, 405mm, 508mm.... |
| Coil weight |
1.5-3. 0tons |
Color Coated Aluminum Coil Cold Hot Rolled PE/PVDF Coating Paint
1. Export wooden pallet, craft paper or at buyer’s requirement
2. Inner size of 20ft container: 5.69m(length) x 2.13m(width) x 2.33m(high) about 27-28CBM, load 25-26MT.
3. Usually shipped from Qingdao port
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q:How long is your delivery time?
A: About 3-20 days.
Q:Do you provide samples? Is it free or extra?
A:Yes,we could offer the sample for free charge but do not pay the cost of freight.
Q:Can you do customized design and size?
A:Yes,we accept product customization.
