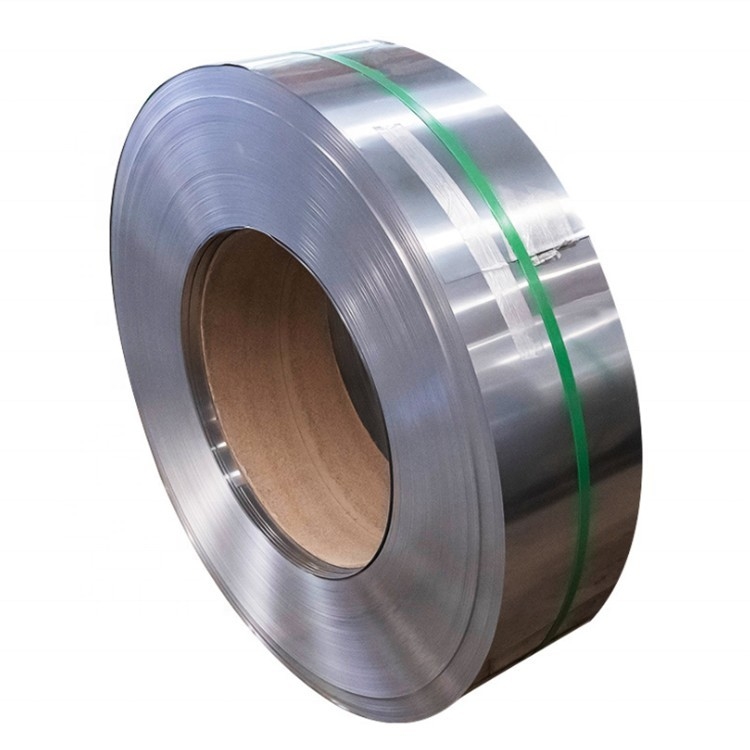

SS 441 Stainless Steel Metal Strip AISI 441 Bending Welding Decoiling

SS 441 Stainless Steel Metal Strip AISI 441 Bending Welding Decoiling

  • High Light

    Stainless Steel Metal Strip AISI 441

    ,

    SS 441 Stainless Steel Coil

    ,

    Stainless Steel Metal Strip Decoiling

  • Type
    Stainless Steel Strip
  • Steel Grade
    Stainless Steel J1, J2, J4, 201, 202, 301, 304, 304H, 304L, 309, 309S, 310, 310S, 316, 316L, 316Ti, 321, 321H, 347, 409, 410, 410S, 420, 430, 441, 904L
  • Surface Finish
    NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA.
  • Thickness
    0.02mm – 5.0mm
  • Standard
    ASTM, JIS, AISI, GB
  • Width
    3.2mm – 1500mm
  • Processing Service
    Bending, Welding, Decoiling, Punching, Cutting, Moulding
  • Application
    Construction,Kitchenware,Medical Instruments,Industry,Decoration

SS 441 Stainless Steel Metal Strip AISI 441 Bending Welding Decoiling

SS 441 Stainless Steel Coil AISI 441 Stainless Steel Strip



Product specification



Manufacturing stainless steel strip is a multi-step process. First, the raw materials are melted together in an electric furnace for 8 to 12 hours, until they reach their recrystallization temperature. The molten steel is then cast into semi-finished forms called blooms, billets, slabs, rods and tube rounds. The unfinished shapes then undergo a forming process such as cold rolling, in order to become stainless steel strip.



The cold rolling process is not done at temperatures that are generally considered cold, but at temperatures that are below the recrystallization temperature of the metal. During the cold rolling process, stainless steel strip is pulled between rollers in order to be compressed and squeezed into the desired shape, which for strip is very thin with a length that is many times its width.



Heat-treatable stainless steel can also be hot rolled, which is generally the same process except the process is done at temperatures that are above the recrystallization temperature of the metal. The most common grades used to form stainless steel bars include 304 and 316. The 300 series are types of austenitic stainless steel, meaning that they are useful in mild, harsh and corrosive environments as well as being non-magnetic.



Grades Stainless Steel J1, J2, J4, 201, 202, 301, 304, 304H, 304L, 309, 309S, 310, 310S, 316, 316L, 316Ti, 321, 321H, 347, 409, 410, 410S, 420, 430, 441, 904L
Thickness 0.02mm – 5.0mm
Width 3.2mm – 1500mm
Length AS PER CUSTOMER’S REQUIREMENT
Type of Material STAINLESS STEEL SOFT, DEEP DRAW, EXTRA DEEP DRAW, QUARTER HARD, HALF HARD,FULL HARD.
Test Certificate Yes.
Finish NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA.






AISI 441 is a nominal 18% chromium (Cr) bearing ferritic stainless steel stabilized with niobium (Nb).

Stainless 441 provides good high-temperature strength that exceeds that of Types 409 and 439 stainless steels.
Type 441 stainless offers good corrosion resistance in many exhaust gas environments, equivalent to that of Type 439.



Grade C Cr Nb Ti
EN 1.4509 DIN X2CrTiNb18 0.03 17.5~18.5 3xc+0.3~1.0 0.1~0.6



Grade Specifications for Stainless Steel 441 Sheets

Grade WERKSTOFF NR. AISI UNS JIS EN
SS 441 1.4509 441 S44100 SUS44100 X2CrTiNb18



Chemical Properties of SS 441 Sheets

Gr C Mn P S Si Cr Ni N Ti Nb
SS 441 0.03 max. 1.00 max. 0.04 max. 0.03 max. 1.00 max. 17.5 -19.5 1.00 max. 0.03 max. 0.10 – 0.50 0.30 + 9xC min., 0.90 max.





Mechanical Properties of SS 441 Sheets

UTS Ksi.(Mpa) 0.2% Yield Strength Ksi.(Mpa) Elongation % in 2″ (50.8 mm) Rockwell Hardness
71 (490) 45 (310) 32 HB78







Processing Equipment

  • plasma cutting
  • decoiler machine
  • slitting unit
  • flying shear
  • water cutting equipment




Packaging & Delivery



Packing Details: 1. Export sea worthy package + water proof paper + wooden pallet
2. Safe loading and fixing Professional teams
Seaworthy wooden pallet or according to client's requirement
MOQ 1 ton or free samples
Price term FOB China port & CIF Destination Port & CFR
Delivery Detail: within 7-10 working days after receiving the deposit or according to your order quantity.
