Mirror Finish SS Coils 0.025mm 4mm Thickness Hot Galvanized Cold Drawn
-
High Light
Wuxi Benchmark Mirror Finish SS Coils 0.025mm
,Wuxi Benchmark stainless steel 410 coil 4mm
,Wuxi Benchmark hot galvanized steel coil GB
-
TypeCoil, Plate, Strip
-
Material430 321 2205 2520 2507 309S 904L 420 310S 201 316L 304
-
TechniqueRerolling,Hairline Mirror Etching Embossing,Cold Drawn Hot Rolled Forged
-
Thickness0.03 To 100mm Etc
-
StandardASTM, JIS, AISI, GB
-
Width10mm To 2500mm Etc
-
Processing ServiceBending, Welding, Decoiling, Punching, Cutting, Moulding
-
ApplicationConstruction,Kitchenware,Medical Instruments,Industry,Decoration

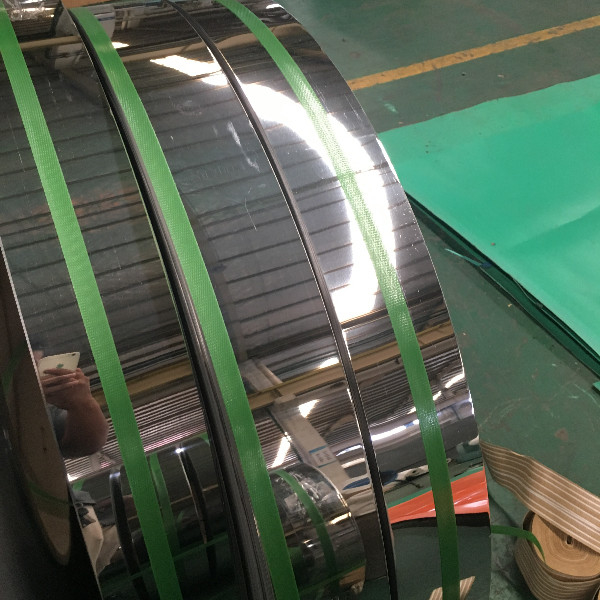

Mirror Finish SS Coils 0.025mm 4mm Thickness Hot Galvanized Cold Drawn
Mirror Finish Stainless Steel Coils For Building Materials
Product specification
| Items | Stainless Steel Coil | |||||
| Standard | GB/T14976-2002,GB13296-91,GB9948-88 | |||||
| ASTM/ASME A213/SA213,ASTM/ASME A312/SA312, | ||||||
| ASTM/ASME A269/SA269,DIN 17458-85,DIN 17456-85,JIS G 3459, | ||||||
| JIS G 3463,JIS G 3448,JIS G 344 | ||||||
| Size | Width: 3.5mm～1550mm | |||||
| Thickness: 0.025mm～4mm | ||||||
| Industrial process | hot rolled,hot expanded,cold drawn,and hot galvanized | |||||
| Tolerance | a) Outer Diameter:6-32mm:+/- 0.2mm, | |||||
| 32-38:+/-0.15mm,42-60:+/-0.20mm,60mm:+/-0.25mm | ||||||
| b) Thickness: +/- 10% | ||||||
| c) Length: +/- 5mm | ||||||
| Surface | 180G, 240G, 320G Satin / Hairline | |||||
| 400G, 600G Mirror finish | ||||||
| Application | steel bridge,boiler plate,shipbuilding steel,steel armor,automotive steel, | |||||
| roof plate,structural Steel,electrical steel etc. | ||||||
| Test | Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT | |||||
| Material Composition | 201 | 202 | 304 | 316L | 430 | |
| Chemical Composition | C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.035 | ≤0.12 |
| Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | |
| Mn | 5.5-7.5 | 7.5-10 | ≤2.00 | ≤2.00 | ≤1.00 | |
| P | ≤0.06 | ≤0.06 | ≤0.045 | ≤0.045 | ≤0.040 | |
| S | ≤0.03 | ≤0.03 | ≤0.030 | ≤0.030 | ≤0.030 | |
| Cr | 13-15 | 14-17 | 18-20 | 16-18 | 16-18 | |
| Ni | 0.7-1.1 | 3.5-4.5 | 8-10.5 | |||
| Mo | 2.0-3.0 | |||||
| Material Item | 201 | 202 | 304 | 316 | ||
| Mechanical Property | Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 | |
| Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 | ||
| Extension | ≥30% | ≥30% | ≥35% | ≥35% | ||
| Hardness (HV) | <105 | <100 | <90 | <90 | ||
| Extension | ≥30% | ≥30% | ≥35% | ≥35% | ||
Material Thickness: .010"-.500"
Min/Max Slit width: .375”-84”
Min/Max ID: 20”-30”
Max OD: 84”
Slit Width Tolerance: +/-.005"
STAINLESS SHEET COIL APPLICATIONS
- Architectural
- Kitchen equipment
- Decorative applications
- Aircraft exhaust manifolds
- Expansion joints
- Furnace parts
- Heating element tubing
- Heat exchangers
- Household appliances
- Metal molding
- Metal trim
- Cabinet hardware
- Hinges
Packaging & Delivery
| Packing Details: | 1.Export sea worthy package + water proof paper + wooden pallet |
| 2.Safe loading and fixing Professional teams | |
| Seaworthy wooden pallet or according to client's requirement | |
| MOQ | 1 ton or free samples |
| Price term | FOB China port & CIF Destination Port & CFR |
| Delivery Detail: | within 7-10 working days after receiving the deposit or according to your order quantity. |
Commitment clause
- Reliable quality and competitive price
- Accept any third party test
- Professional sales team and reliable factory
- Customized design is available
- Free sample are available
- Showing the splendor of your quality
- Strong corrosion resistance and decorative effect
- Durable and beautiful in good quality
